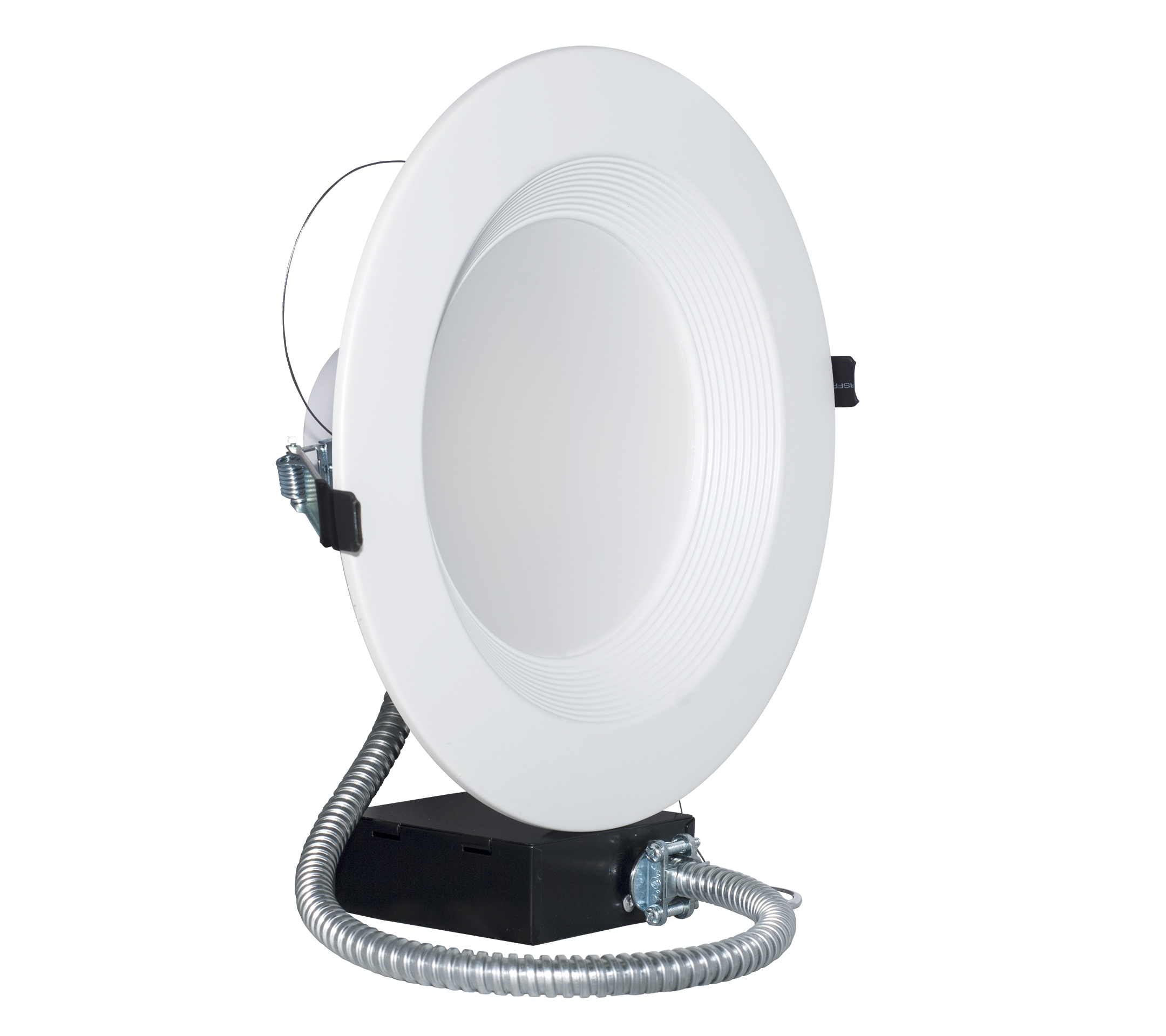

M6CDLA20W-3CCT

6" Commercial Grade Recessed Downlight with Wattage and 3CCT Selector

• 3 selectable color temperature
• 3 selectable light output level
• Canless, no can housing is needed for installations
• 120-277V universal input voltage
• Wet location listed
• 0-10V smooth deep dimming to 5%
• IC rated
• Energy Star and UL certified
• Certified to California JA8
• Can be used to comply with Title 24 Part 6 requirements
dlc premiumdlc premiumdlc premiumdlc premiumdlc premium

M6CDLA20W-3CCT

6" Commercial Grade Recessed Downlight with Wattage and 3CCT Selector
dlc premiumdlc premiumdlc premiumdlc premiumdlc premium
Girl in a jacketdlc premiumdlc premiumdlc premiumdlc premiumdlc premium

DESCRIPTION

The MW 6CDLA20W downlight fixture is an all-in-one solution for your commercial recessed lighting applications. The color temperature can be switched from 3000K soft white, 4000K cool white to 5000K daylight and the lumen can be adjusted to 3 different levels. Also, the Canless Ultra-Slim design reduce the required of clearance for the installation, more easier for your installation. The 6CDLA20W downlight is Energy Star® and UL certified. Also, it can be used to comply with Title-24 and JA8 high efficacy light source requirements. It satisfies most application needs in shopping center, business building, hotel, airport, hospital and other commercial buildings.

PRODUCT SUMMARY

PHOTOMETRIC

DELIVERED LUMEN

WATTAGE

CCT

CRI

VOLTAGE

DIMMABLE

1140/1520/1900 Lm
12W/16W/20W
3000K/4000K/5000K
80
120V-277V, 60 Hz
Yes

DESCRIPTION

The MW 6CDLA20W downlight fixture is an all-in-one solution for your commercial recessed lighting applications. The color temperature can be switched from 3000K soft white, 4000K cool white to 5000K daylight and the lumen can be adjusted to 3 different levels. Also, the Canless Ultra-Slim design reduce the required of clearance for the installation, more easier for your installation. The 6CDLA20W downlight is Energy Star® and UL certified. Also, it can be used to comply with Title-24 and JA8 high efficacy light source requirements. It satisfies most application needs in shopping center, business building, hotel, airport, hospital and other commercial buildings.

PRODUCT SUMMARY

LUMEN

1140/1520/1900 Lm

WATTAGE

12W/16W/20W

CCT

3000K/4000K/5000K

CRI

80

VOLTAGE

120V-277V, 60 Hz

DIMMABLE

Yes

PHOTOMETRY
